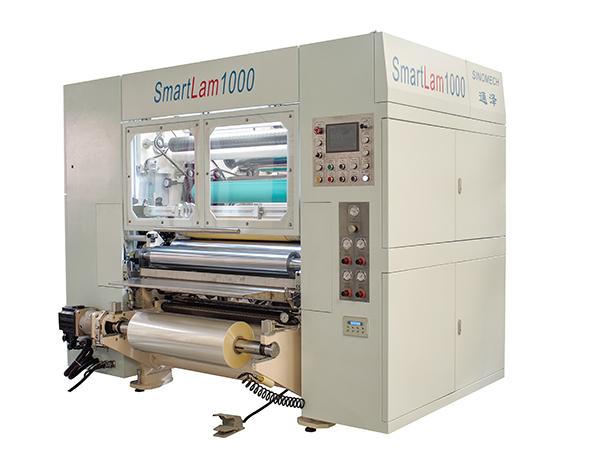

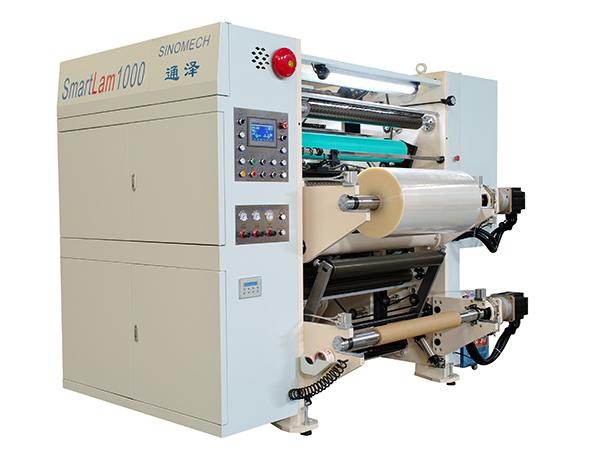

SmartLam1000/1300 Solventless Laminator

Main Technical Data

Max. Laminating Speed	300M/min
Max Web Width:	1050/1300mm
Max Unwinding Diameter	600mm
Max Rewinding Diameter	800mm
Coating & Tension Control	6 Independent Servo Motors
Corona Treater	Optional
Mixing Unit	SM6-40 Standard Mixer

Main Features:
– Compact design with minimized web path, especially suitable for small run production.
– Easy operation: one-man operated with chain type web threading system and double touch screen
– Digital servo control: high machining precision and stable operation at different machining speeds.
– High cost-performance ratio: suitable for small & medium-sized enterprises.

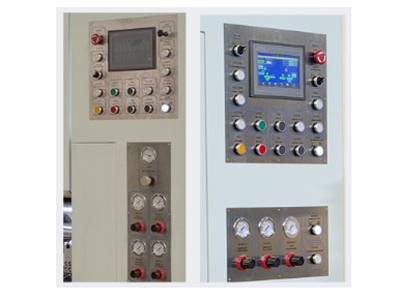

Double touch screen design

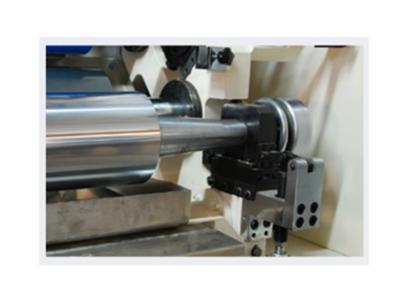

Fast positioning system

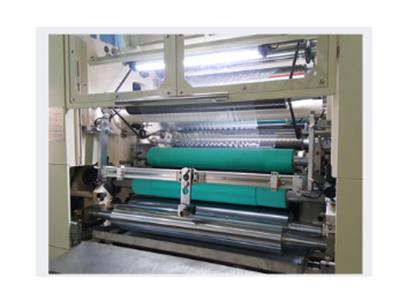

Patented Multi-roll coating system

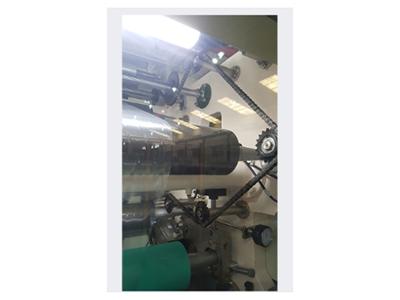

Automatic web-threading system

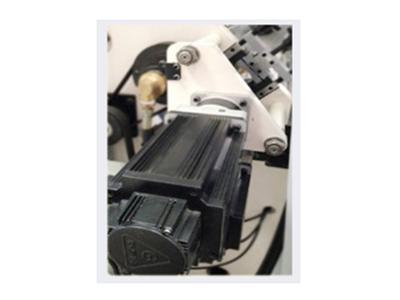

Independent servo control

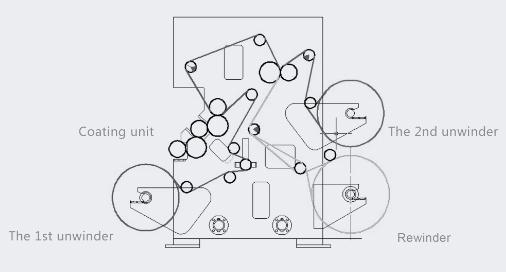

Layout of SmartLam Solventless Laminator
